This guide covers Facebook CAPI for Shopify: why the Pixel alone is not enough, how CAPI works, native Shopify setup, GTM server-side setup, event deduplication, testing and validation, and troubleshooting common errors.
1. Why the Meta Pixel Alone Is Not Enough
The Meta Pixel has been the foundation of Facebook ad tracking for years. But in 2026, relying on the pixel alone means you are probably missing 20-35% of your conversions. And that gap is growing.
Three things are eating into pixel data. First, Apple's ATT framework (introduced with iOS 14.5) lets users opt out of tracking. Roughly 75-85% of iOS users have opted out. The pixel cannot track those users at all. Second, Safari's ITP restricts cookie lifespans, so even users who do not opt out lose their tracking cookies after 7 days. Third, ad blockers block the pixel script entirely for 30-40% of desktop users.
The result: Meta's ad algorithm is making bidding decisions based on incomplete data. It cannot see all your conversions, so it cannot properly attribute them to ads. This means your campaigns look worse than they actually are, and the algorithm cannot find more customers like your converters because it does not know who all your converters are.
The Conversions API (CAPI) fixes this by sending conversion data directly from your server, bypassing the browser entirely. It is not a replacement for the pixel. It works alongside it. Together, they give Meta a much more complete picture of your conversions.

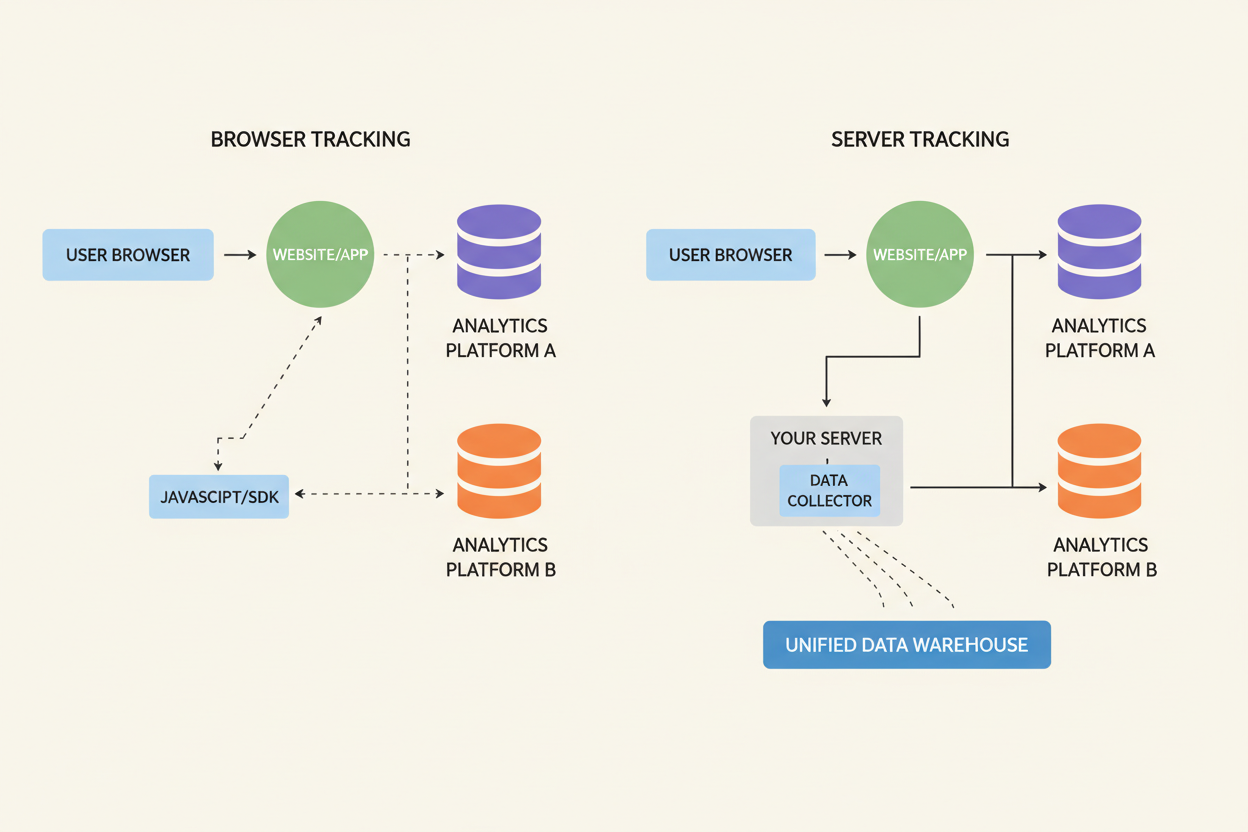

2. How the Conversions API Works
CAPI is a server-to-server connection. When a customer completes a purchase on your Shopify store, your server sends that event data directly to Meta's servers via API. No browser involved, no pixel required, no ad blocker in the way.
Each CAPI event includes the same data the pixel would send (event name, event time, customer parameters) plus some extras the pixel cannot access (like order ID from your backend). Meta uses hashed customer identifiers (email, phone, IP address) to match the server event to the user who saw or clicked your ad.
The key concept is deduplication. Since both the pixel AND CAPI are sending events, Meta needs to know which events are duplicates of the same purchase. You do this by sending a consistent event_id with both the pixel event and the CAPI event. Meta matches them up and only counts the conversion once. More on this in section 5.
3. Native Shopify CAPI Setup
Shopify has built-in CAPI support through its Facebook & Instagram channel app. This is the fastest way to get CAPI running.
- Install the Facebook & Instagram channel app from the Shopify App Store (if not already installed).
- Connect your Facebook Business Manager account and select your Meta Pixel.
- In the app settings, ensure "Conversions API" is toggled on. Shopify handles the server-side event sending automatically.
- Verify in Meta Events Manager that you see both "Browser" and "Server" sources for your events.
The native setup covers the main ecommerce events: PageView, ViewContent, AddToCart, InitiateCheckout, and Purchase. It automatically sends hashed email and phone from checkout data for matching.
The limitation: Shopify's native CAPI implementation is basic. You cannot customize which parameters are sent, add custom events, or control the deduplication logic. For most stores, this is fine. But if you need more control (multi-pixel setups, custom events, advanced matching), you will need Method 2.
4. Server-Side GTM Setup for CAPI
For more control, you can send CAPI events through a Server-Side GTM container. This is more complex but gives you full control over event data, custom parameters, and multi-pixel configurations.
The setup at a high level:
- Set up a Server-Side GTM container (see our server-side tracking guide for details).
- In your server container, add the "Facebook Conversions API" tag from the GTM Community Gallery.
- Configure the tag with your Meta Pixel ID and an access token generated in Meta Events Manager.
- Map incoming client-side events to the correct Meta event names and parameters.
- Set the event_id to match the one sent by your client-side pixel for deduplication.
The GTM approach also lets you enrich events with server-side data. You can add customer lifetime value, first purchase date, or product margin data that the browser pixel does not have access to. Meta can use this extra data for better audience targeting.
5. Event Deduplication
Deduplication is the part most people get wrong. And getting it wrong means either double-counting (every purchase counted twice) or undercounting (CAPI events discarded because Meta thinks they are duplicates of events that never arrived via pixel).
The rule is simple: both the pixel event and the CAPI event must send the same event_id for the same action. When Meta receives both, it keeps one and discards the duplicate.
On Shopify's native CAPI integration, deduplication is handled automatically. But if you are using GTM or a custom setup, you need to generate a unique event_id on the client side, pass it with both the pixel event (via dataLayer) and the CAPI event (via your server). A common approach is to use the Shopify order ID as the event_id for purchase events.
How to check: In Meta Events Manager, look at your Purchase event and click "Overview." There is a "Deduplication" section that shows the overlap between browser and server events. If it shows 0% overlap, deduplication is not working. If it shows 100%, it is working perfectly. Anything between 60-90% is typical and healthy.
6. Testing and Validation
Meta Events Manager has a built-in testing tool. Go to Events Manager > your Pixel > Test Events. Enter your store URL and browse your site. You will see events appear in real time with their source (Browser, Server, or both).
Check these things:
- Event Match Quality (EMQ): This score (1-10) tells you how well Meta can match your events to users. Aim for 6.0+ for Purchase events. Below 4.0 means you need to send more customer parameters (email, phone, name).
- Server events appearing: After placing a test order, verify that the Purchase event shows a "Server" source in addition to "Browser."
- Deduplication status: Check that matched events show as deduplicated, not double-counted.
- Parameter completeness: Click on individual events and verify that value, currency, content_ids, and customer parameters are populated.
7. Troubleshooting Common Errors
CAPI events not appearing in Events Manager. Check your access token. It expires and needs to be regenerated. Also verify the Pixel ID in your CAPI configuration matches the one in Events Manager.
Low Event Match Quality. Send more customer parameters. At minimum: hashed email, hashed phone, client IP address, user agent, and fbc/fbp cookie values. The more identifiers you send, the higher the match rate.
Double-counted conversions. Your deduplication is broken. Verify that event_id is consistent between pixel and CAPI events. A common bug: the pixel sends event_id as a string, but CAPI sends it as a number. They need to be the same type and value.
CAPI events arriving late. Events should arrive within minutes of the conversion. If there is a delay of hours, check your server-side setup for queuing issues. Meta discards events that arrive more than 7 days after they occurred, but events arriving more than 1 hour late may not be used for optimization.
"Permission error" from the API. Your access token does not have the right permissions. Generate a new one in Events Manager with the "Manage your Business" permission scope. Also confirm the token is associated with the correct Pixel ID in the correct Business Manager.
Frequently Asked Questions
No. CAPI works alongside the pixel, not instead of it. The pixel handles browser-side tracking, CAPI handles server-side. Together they give Meta the most complete conversion data. Running only CAPI without the pixel means you lose real-time browser events for optimization.
Most stores see a 15-25% increase in reported conversions after enabling CAPI. This does not mean more actual sales. It means Meta can see and attribute more of the conversions that were already happening. Better attribution data typically leads to 5-15% better ROAS over 2-4 weeks as the algorithm adjusts.
Yes. Shopify's native Facebook channel has built-in CAPI support. Third-party apps like Elevar and Analyzify also handle CAPI without requiring a server container. Server-side GTM gives you the most control but is not the only option.
